该机应用于底托附膜包装，广泛使用在饮料，啤酒，化工，食品，医药等行业整机气动膨胀支撑膜卷，换膜快捷迅速，换膜只需约2分钟。

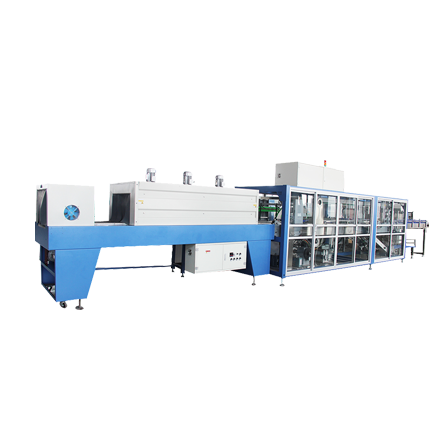

This machine is used for bottom supported film packaging and is widely used in industries such as beverages, beer, chemicals, food, pharmaceuticals, etc. It is equipped with pneumatic expansion support film rolls for quick and easy film replacement, which only takes about two minutes.
薄膜张力输送，均匀平整，切膜控制精确，切口整齐。
Thin film tension conveying, uniform and smooth, precise film cutting control, and neat cutting.
先进的伺服控制技术可保持各机构精确同步，传送可靠。
Advanced servo control technology can maintain precise synchronization of various mechanisms and ensure reliable transmission.
加热箱结构合理、隔热保温，温控精度高。
The heating box has a reasonable structure, thermal insulation, and high temperature control accuracy.
配套德国西门子、德国P＋F、日本SMC等世界上最先进的控制元器件，装备精良、工况稳定。
Equipped with the world's most advanced control components such as Siemens from Germany, P+F from Germany, and SMC from Japan, the equipment is well-equipped and the working conditions are stable.
机械传动部件采用经过热处理的不锈钢或中碳钢等材料；表面喷涂质量优良，整机防锈性能强。
Mechanical transmission components are made of heat-treated materials such as stainless steel or medium carbon steel; The surface spraying quality is excellent, and the whole machine has strong anti rust performance.
┃产品详情
┃ Product Details
设备外形尺寸（mm）： | L12500*W1560*H2460（可定制） |
包装尺寸： | 按照客户要求包装 |
收缩膜材料： | PE和彩膜 |
收缩膜厚度： | 0.07mm-0.13mm |
每分钟最高产量： | ≤45包/分钟（可连续无级调速） |
输送带最大宽度： | ≤580mm（按照客户要求） |
Equipment dimensions (mm) | L12500*W1560*H2460（customizable） |
Packaging size:： | Packaging according to customer requirements |
Shrink film materials:： | PE and colored film |
Shrinkage film thickness： | 0.07mm-0.13mm |
Maximum output per minute： | ≤ 45 packs/minute (continuously |
Maximum width of conveyor belt： | ≤580mm (according to customer requirements) |
┃包装效果展示
┃ Packaging Effect Display
┃车间实拍
┃ Workshop Shooting
