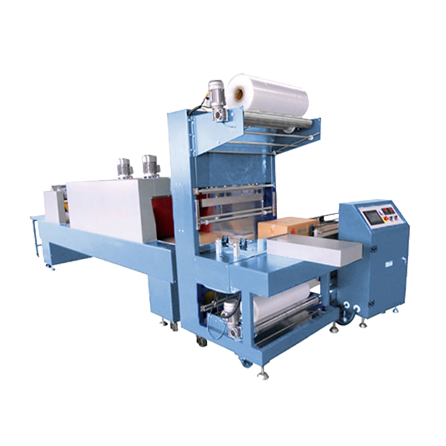

采用进口PLC程序自动控制，性能稳定，控制精确。具有自动输送进料，理瓶、收缩、冷却定型流程的全自动化功能。薄膜输送采用感应开关控制，可谓控送膜长度，减少损耗。输送电机采用进口变频器控制，实现无极调度。先进的螺旋风循环结构，三层隔热层处理，节约能源。加强型冷却定型通道，可使用产品迅速定型，方便储运。
Adopting imported PLC program for automatic control, with stable performance and precise control. It has fully automated functions of automatic feeding, bottle sorting, shrinkage, cooling and shaping processes. The film conveying is controlled by an induction switch, which can be said to control the length of the film and reduce losses. The conveyor motor is controlled by an imported frequency converter to achieve stepless scheduling. Advanced spiral wind circulation structure, three-layer insulation treatment, energy-saving. Enhanced cooling and shaping channel, which can quickly shape products and facilitate storage and transportation.
┃产品详情
┃ Product Details
整机外形尺寸： | L5050*W3300*H2100 |
整机外包装尺寸主机： | L1220*W1000*H2250 |
收缩炉： | L3900*W1000*H2100 |
整机重量： | 1.5t |
最大包装尺寸： | L420*W280*H350 |
包装速度： | 8-12pcs/min |
输送带高度： | 920(可调100)mm |
工作电源功率： | 三相五线 380v50HZ |
工作气压： | 0.6-0.8Mpa |
整机功率： | 20kw |
Overall dimensions of the machine： | L5050*W3300*H2100 |
Packaging size of the whole machine Host： | L1220*W1000*H2250 |
Shrinkage furnace： | L3900*W1000*H2100 |
Whole machine weight： | 1.2t |
Maximum packaging size： | L420*W280*H350 |
Packaging speed： | 8-12pcs/min |
Belt height： | 920 (adjustable by 100) mm |
Working power supply power： | 920 (adjustable by 100) mm |
Working pressure： | 0.6-0.8Mpa |
Whole machine power： | 20kw |
┃包装效果展示
┃ Packaging Effect Display
┃车间实拍
┃ Workshop Shooting
