本机选用了世界领先水平的德国西门子控制系统，拥有领先的控制理念，强大的系统兼容性，高速的总线通讯速率，广泛的通讯协议支持，高精度的伺服同步控制。通讯接口齐全，具有很强的系统扩展能力、组网能力及很好的开放性。结构更加科学合理，更加人性化，更便于操作，所包装的产品质量稳定，生产量显著提高。

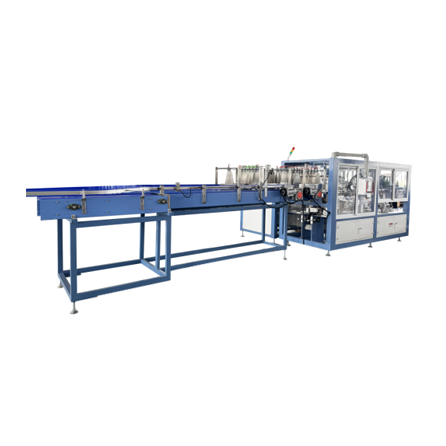

This machine adopts the world leading Siemens control system from Germany, with advanced control concepts, strong system compatibility, high-speed bus communication speed, extensive communication protocol support, and high-precision servo synchronization control. The communication interface is complete, with strong system expansion capability, networking capability, and good openness. The structure is more scientific and reasonable, more user-friendly, and easier to operate. The quality of the packaged products is stable, and the production volume has significantly increased.
┃产品详情
┃ Product Details
生产能力： | 15-20箱/分钟 |
额定功率： | 15KW |
电源： | 三相380V/50HZ |
控制电源： | 24VDC |
压缩空气： | 1500L/min 0.6-0.8Mpa |
熔体胶粘剂固化时间： | 1.5-2s |
机器重量： | 4000Kg |
机器外形尺寸： | 6285*2582*2115mm |
瓶子尺寸： | 3000*620*1200mm |
产品包装规格： | 200-600ml 4*6 750-2500ml 3*4 2*3 |
Production Capacity： | 15-20 boxes/minute |
Rated Power： | 15KW |
Power Supply： | three-phase 380V/50HZ |
Control Power Supply： | 24VDC |
Compressed Air： | 1500L/min 0.6-0.8Mpa |
Curing Time Of Melt Adhesive： | 1.5-2s |
Machine Weight： | 4000Kg |
Machine Dimensions： | 6285*2582*2115mm |
Bottle Size： | 3000*620*1200mm |
Product Packaging Specifications： | 200-600ml 4*6 750-2500ml 3*4 2*3 |
┃包装效果展示
┃ Packaging Effect Display
┃车间实拍
┃ Workshop Shooting
